Atlas 7000 - SLD
Planta ATL-7003
Price on request
What does this mean?
Our floor plans are designed to optimize trailer space, so some elements such as tables, sofas, mezzanines, etc. are converted into beds and sleeping areas at night.
Details
Sleeps: 6 guests
Double Bed: 1510 x 2000 mm
Sofa / Dinette: 1160 x 2000 mm
U-Shaped Sofa: 1300 x 2130 mm

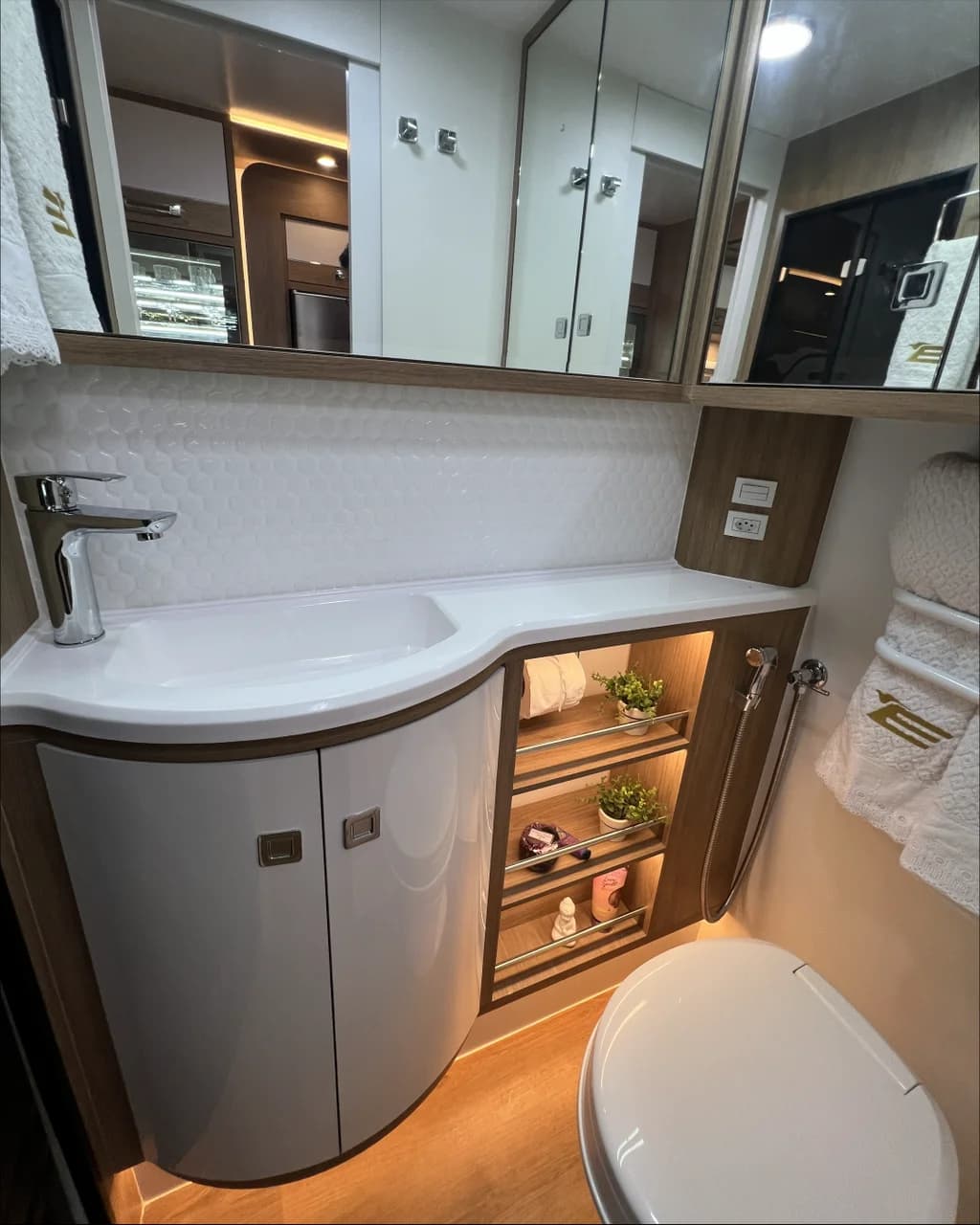

Bathroom: 1135 x 800 mm
Shower Stall: 800 x 750 mm
Slide Out: 2540 x 1730 x 600 mm
|
Planta ATL-7003
Standard features
Fresh water tank 01140 liters
Fresh water tank 02140 liters
Grey water tank130 liters
Black water tank130 liters
ToiletMarine toilet for motorhome/trailer RV Seaflo
Tank level sensor (fresh / grey water)Precision sensor Garnet
Awning length4500 mm
Water heaterInstant water heater 7 L
Accommodations5 seats
TV 01Smart TV 32 '' (living room)
TV 02Smart TV 24 '' (bedroom) Optional
Outdoor TVSmart TV 24"
Over-the-air TV antennaMaxview Gazelle Pro
Indoor kitchen stoveEOS / Suggar stainless steel 2 burners
Outdoor kitchen stoveCooktop Fogatti 2 burners
Gas ovenVenax 50 liters
Microwave ovenElectrolux 20 L
RefrigeratorDuplex EOS 240 L stainless steel 220V
Air conditioner 01Rooftop air conditioner 9600 BTU H/C 220V Inverter
Air conditioner 02Optional
12V air coolerOptional
InverterVictron Multiplus II 3000 W Pure Sine Wave 3000 W
ConverterStabilizer Kebo 5 kVA 100-260V Automatic
Battery chargerVictron Multiplus II 120 Ah
Solar panel 01Solar panel 340 W Mono
BatteryLifepo4 Lithium 200 Ah
Additional batteryOptional
Imported entry door1800 x 600 mm
Kitchen windowImported 900x450 mm
Bedroom windows, right sideImported 700x400 mm
Bedroom windows, left sideImported 700x400 mm
Dinette window(2x) Imported 900x450 mm
Slide-out windowImported 1200 x 500 mm
Rear windowImported 1200x500 mm
Roof windowImported 700x500 mm
Outdoor showerSeaflo H/C
Bathroom skylight40 x 40 Exhaust fan 3 speeds 12V
Pressure accumulatorSeaflo 55 PSI
Kitchen countertopSilestone Gray
Kitchen faucetHot / cold
Washbasin faucetHot / cold
Outdoor kitchen faucetHot / cold
WashbasinSquare porcelain
Indoor kitchen sinkTramontina 40 x 34 cm
Outdoor kitchen sinkGelcoat fiberglass
Outdoor kitchenSlide-out 700 mm
Outdoor kitchen service doorImported 840 x 325 mm
Luggage compartment service doorImported 840 x 500 mm
Luggage compartment service doorImported 840 x 500 mm
Glass cabinet / barIncluded
Gas sensorIncluded, RV Safe gas and carbon monoxide detector
Other Atlas 7000 - SLD floor plans
Discover other floor plan options for this model.
